DS18B20 1-Wire Digital Thermometer The DS18B20 digital thermometer offers 9-bit to 12-bit Celsius temperature readings and features an alarm function with nonvolatile, user-programmable upper and lower trigger points. It communicates via a 1-Wire bus that requires only one data line (and ground) to connect with a central microprocessor. Additionally, the DS18B20 can draw power directly from the data line, known as "parasite power", eliminating the need for an external power supply.

Each DS18B20 has a unique 64-bit serial code, enabling multiple units to operate on the same 1-Wire bus. This makes it easy to control multiple DS18B20s from a single microcontroller over a large area.

This feature benefits applications such as HVAC environmental controls, temperature monitoring systems inside buildings, equipment or machinery, and process monitoring and control systems.

Features

  • Unique 1-Wire interface requires only one port pin for communication.
  • Multidrop capability simplifies distributed temperature sensing applications.
  • It requires no external components and can be powered from a data line.
  • The power supply range is 3.0V to 5.5V DC.
  • Zero standby power is required.
  • It measures temperatures from -55°C to +125°C. The Fahrenheit equivalent is -67°F to +257°F.
  • It offers ±0.5°C accuracy from -10°C to +85°C.
  • Thermometer resolution is programmable from 9 to 12 bits.
  • Converts 12-bit temperature to a digital word in 750 ms (max.).
  • User-definable, nonvolatile temperature alarm settings are available.
  • The alarm search command identifies and addresses devices whose temperature is outside the programmed limits (temperature alarm condition).
  • Applications include thermostatic controls, industrial systems, consumer products, thermometers, or any thermally sensitive system.

The BME/BMP sensors can be integrated with the Tasmota system.
For more details, see here: https://tasmota.github.io/docs/DS18x20/

If you'd like to support the development of the site with the price of a coffee — or a few — please do so here.

Here's a handy tip: you can quickly save this page as a PDF by clicking “export to PDF” in the menu on the right side of the screen.

2026/02/14 22:38

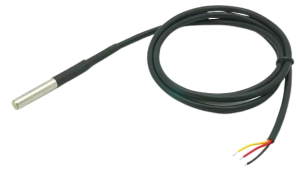

Wiring

Red wire: Power supply (3.0V - 5.5V DC)
Black wire: GND
Yellow wire: Signal (1-wire bus)
DS18B20 wiringDS18B20 wiring

Parasitic/normal mode DS18B20 / 1-wire bus

Normal modeParasitic mode
Normal mode by 1-wire busParasitic mode by 1-wire bus
With an external supply, three wires are needed: the bus wire, ground, and power. The 4.7k pull-up resistor remains necessary on the bus wire. Since the bus is available for data transfer, the microcontroller can continually check the device's status during conversion. This allows a conversion to complete as soon as the device reports it is done, without waiting for the conversion time (which depends on device function and resolution) in “parasite” power mode.When operating in parasite power mode, it requires only two wires: one data wire and one ground wire. The power line must be connected to ground in this mode, as specified in the datasheet. A 4.7k pull-up resistor should be connected to the 1-wire bus at the controller. When the line is in a “high” state, the device pulls current to charge an internal component capacitor.

Addressing a 1-Wire device

Each 1-Wire device has a unique 64-bit 'ROM' address, which includes an 8-bit family code, a 48-bit serial number, and an 8-bit CRC. The CRC helps verify data integrity.

For example, the sample code below checks if the device being addressed is a DS18S20 temperature sensor by looking for its family code, 0x10. To use the sample code with the newer DS18B20 sensor, you would look for a family code of 0x28. For the DS1822, you would check for 0x22.

Arduino

The DS18B20 is a popular 1-Wire digital temperature sensor known for its simplicity and the ability to connect multiple sensors to a single Arduino pin.

Wiring & Pull-up Resistor

The most critical component of the setup is the 4.7 kΩ pull-up resistor. Without it, the 1-Wire bus cannot return to a “high” state, and you will not get any readings.

  • VCC: 3.3V or 5V
  • GND: Ground
  • Data (DQ): Any digital pin (e.g., Pin 2)
  • Resistor: Place the 4.7kΩ resistor between VCC and Data.

Required Libraries

To run the code below, install these two libraries via the Arduino Library Manager (Sketch > Include Library > Manage Libraries):

  • OneWire by Paul Stoffregen
  • DallasTemperature by Miles Burton

Arduino Sketch

This script initializes the sensor and prints the temperature in both Celsius and Fahrenheit every second.

#include <OneWire.h>
#include <DallasTemperature.h>

// Data wire is plugged into port 2 on the Arduino
#define ONE_WIRE_BUS 2

// Setup a oneWire instance to communicate with any OneWire devices
OneWire oneWire(ONE_WIRE_BUS);

// Pass our oneWire reference to Dallas Temperature.
DallasTemperature sensors(&oneWire);

void setup(void) {
  Serial.begin(9600);
  Serial.println("DS18B20 Single Sensor Read");

  // Start up the library
  sensors.begin();
}

void loop(void) {
  // Send the command to get temperatures
  Serial.print("Requesting temperatures...");
  sensors.requestTemperatures();
  Serial.println("DONE");

  // Use index 0 to refer to the first (and only) sensor on the wire
  float tempC = sensors.getTempCByIndex(0);

  // Check if reading was successful
  if(tempC != DEVICE_DISCONNECTED_C) {
    Serial.print("Temperature: ");
    Serial.print(tempC);
    Serial.print("°C | ");
    Serial.print(DallasTemperature::toFahrenheit(tempC));
    Serial.println("°F");
  } else {
    Serial.println("Error: Could not read temperature data");
  }

  delay(1000);
}
