The RP2040 is a small, specially engineered silicon chip developed by Raspberry Pi to serve as the central controller for electronic devices.

The Raspberry Pi Pico is a compact green circuit board centered on the RP2040 chip, featuring a USB port, storage memory, and pin connections. This design allows for easy connection to a computer, enabling programming to control electronics such as sensors, lights, and motors.

The Raspberry Pi Pico is a compact, quick, and budget-friendly microcontroller board built for managing physical hardware and electronics. Unlike a complete computer, it doesn't operate on an OS such as Windows or Linux. Instead, it executes a single program that you create on your computer and upload to the board using USB.

Key Characteristics

• Purpose: Designed to read sensors, illuminate LEDs, control motors, and automate various hardware tasks.
• Brain: Powered by the RP2040, a custom dual-core chip.
• Languages: Beginner-friendly and easily programmable with MicroPython, CircuitPython, or C/C++.
• Connectivity: Equipped with side GPIO pins for straightforward wiring to external electronic components.
• Cost: Highly popular for its excellent performance-to-price ratio, usually retailing under $5.

The Raspberry Pi Pico 2 is a major performance upgrade over the original Pico 1, delivering faster speeds, double the memory, and a completely new processor architecture while maintaining physical drop-in compatibility.

The primary difference lies in the microprocessing chip: the original Pico utilizes the RP2040 chip, whereas the Pico 2 is built on the upgraded RP2350 platform.

The physical form factor, micro-USB port, and standard 26-pin layout remain unchanged, allowing you to reuse existing breadboards and add-on gear. However, the internal specifications are heavily upgraded:

Feature	Raspberry Pi Pico (Pico 1)	Raspberry Pi Pico 2
Processor Chip	RP2040	RP2350
CPU Architecture	Dual Arm Cortex-M0+	Dual Arm Cortex-M33 OR Dual RISC-V Hazard3 (selectable)
Clock Speed	133 MHz	150 MHz
SRAM (RAM)	264 KB	520 KB
On-board Flash	2 MB	4 MB
Floating Point Unit	Software-only (slower math)	Hardware FPU (on Arm cores)
PWM Channels	16 channels	24 channels
PIO State Machines	8	12 (via a 3rd PIO block)

Software Compatibility

Both boards are configured and programmed with MicroPython, CircuitPython, or C/C++. They are highly source-compatible, so your code can be transferred easily. However, due to different internal memory layouts, they are not binary-compatible, requiring you to download or compile the appropriate variant file for either the RP2040 or RP2350 platform.

The RP2040-Zero is an ultra-compact, low-cost microcontroller development board designed by Waveshare. It is built around the Raspberry Pi RP2040 silicon chip, squeezing the processing power of a standard Raspberry Pi Pico into a tiny form factor roughly the size of a postage stamp.

More information from the board: https://www.waveshare.com/wiki/RP2040-Zero

• Processor: Dual-core ARM Cortex-M0+ clocked at 133 MHz.
• Memory: 264 KB of internal SRAM and 2 MB of onboard Flash storage for code.
• USB Interface: Upgraded USB Type-C port for programming and power.
• Onboard LED: Features a single WS2812 RGB LED (NeoPixel) that can be programmed to any color.
• Pins: Breaks out 29 GPIO pins (20 via outer pin headers, and 9 via solder pads on the back).
• Programmable I/O (PIO): 8 PIO state machines for custom peripheral support
• Built-in temperature sensor, See: RP2040-Zero/Eth Built-in temperature sensor
• Integrated control for WS2812 RGB LED: See: See RP2040-Zero/Eth WS2812 RGB LED

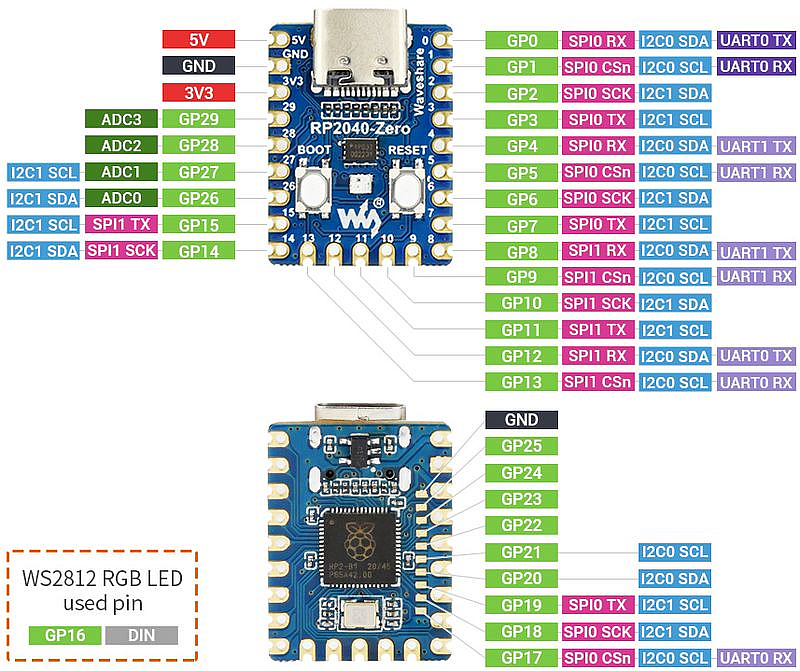

Primary Hardware I²C Pin Pairs on RP2040-Zero

The main pins for hardware I²C on the Waveshare RP2040-Zero are GP0 (SDA) / GP1 (SCL) or GP4 (SDA) / GP5 (SCL):

i2c = machine.I2C(0, scl=machine.Pin(1), sda=machine.Pin(0))

Since the RP2040 chip has a versatile digital network matrix (pin multiplexing), nearly any GPIO pin can be configured for I²C. Nevertheless, the typical hardware blocks (I²C_0 and I²C_1) are most straightforwardly accessed with the configurations below.

Key Electrical Requirements

• Pull-up Resistors: The RP2040-Zero does not include onboard pull-up resistors for the I²C lines. You must add external 4.7 kΩ resistors connected to 3.3V unless your peripheral module (sensor/display) already includes them.
• Voltage Limits: The RP2040 is strictly 3.3V logic compatible. Connecting a 5V I²C device directly to these pins without a logic level shifter can permanently damage the controller.

To enable UART (serial communication) on the Waveshare RP2040-Zero/Eth, you can use its two dedicated hardware UARTs: UART0 and UART1. The RP2040's flexible pin multiplexing allows these UART peripherals to be assigned to various GPIO pins on your board.

Default Hardware UART Pin Mapping

While you can map UART to multiple pins, the standard layout for the RP2040-Zero relies on these primary pins:

Here is how to initialize and use UART0 at a standard baud rate of 9600 to send and receive data:

import machine
import utime

# Initialize UART0 on GP0 (TX) and GP1 (RX)
# Common baud rates: 9600, 115200
uart = machine.UART(0, baudrate=9600, tx=machine.Pin(0), rx=machine.Pin(1))

print("UART0 Initialized. Waiting for data...")

while True:
    # 1. Sending Data
    uart.write("Hello from RP2040-Zero!\n")

    # 2. Receiving Data (Check if any bytes are waiting in the buffer)
    if uart.any():
        # Read the incoming data bytes
        incoming_bytes = uart.read()

        # Convert bytes to a readable string
        incoming_text = incoming_bytes.decode('utf-8', errors='ignore')

        print(f"Received: {incoming_text.strip()}")

    utime.sleep(1)

Note: The RP2040 works only with 3.3V logic. When connecting it to a 5V device, such as an older Arduino Uno, always use a logic level shifter to protect the RP2040 pins.

The Waveshare RP2040 features a built-in temperature sensor integrated directly inside the RP2040 microcontroller. It works by measuring the internal temperature of the silicon chip rather than the ambient room temperature.

Sensor Characteristics

• ADC Channel: Connected internally to ADC Channel 4.
• Voltage at 27°C: Usually outputs 0.706V.
• Temperature Slope: Decreases by 1.721mV per degree Celsius with rising temperature.

MicroPython Code Example

import machine
import utime

# Configure ADC channel 4 for the internal sensor
sensor_temp = machine.ADC(4)
conversion_factor = 3.3 / (65535)

while True:
    # Read the raw 16-bit ADC value
    reading = sensor_temp.read_u16() * conversion_factor

    # Calculate temperature in Celsius based on the RP2040 datasheet
    temperature = 27 - (reading - 0.706) / 0.001721

    print(f"Chip Temperature: {temperature:.2f} °C")
    utime.sleep(2)

The WS2812 RGB LED is operated through a single data line connected to pin GP16, enabling programming of unique colors and blinking effects.

To control the onboard WS2812 RGB LED on the RP2040-Zero, use the neopixel library and connect it to GP16, which is the correct pin for this board:

import machine
import neopixel
import time

# The RP2040-Zero onboard RGB LED is connected to GP16
RGB_PIN = 16
NUM_PIXELS = 1

# Initialize the NeoPixel object
pixels = neopixel.NeoPixel(machine.Pin(RGB_PIN), NUM_PIXELS)

def set_color(r, g, b):
    """Sets the RGB LED color (values from 0 to 255)"""
    pixels[0] = (r, g, b)
    pixels.write()

# Cycle through Red, Green, Blue, and White
while True:
    set_color(255, 0, 0)    # Red
    time.sleep(1)

    set_color(0, 255, 0)    # Green
    time.sleep(1)

    set_color(0, 0, 255)    # Blue
    time.sleep(1)

    set_color(50, 50, 50)   # Dim White
    time.sleep(1)

The RP2040-eth is an ultra-compact, low-cost microcontroller development board designed by Waveshare. It is built around the Raspberry Pi RP2040 silicon chip, squeezing the processing power of a standard Raspberry Pi Pico into a tiny form factor roughly the size of a postage stamp.

More information from the board: https://www.waveshare.com/rp2040-eth.htm

• Processor: Dual-core ARM Cortex-M0+ clocked at 133 MHz.
• Memory: 264 KB of internal SRAM and 2 MB of onboard Flash storage for code.
• USB Interface: Upgraded USB Type-C port for programming and power.
• Onboard LED: Features a single WS2812 RGB LED (NeoPixel) that can be programmed to any color.
• Pins: Breaks out 29 GPIO pins (20 via outer pin headers, and 9 via solder pads on the back).
• Programmable I/O (PIO): 8 PIO state machines for custom peripheral support
• Built-in temperature sensor, See: RP2040-Zero/Eth Built-in temperature sensor
• Integrated control for WS2812 RGB LED: See: See RP2040-Zero/Eth WS2812 RGB LED

• High-performance Processing: The dual-core ARM Cortex MO+ processor, running at up to 133MHz, delivers robust processing power for a range of applications.
• Ample Memory: Equipped with 264KB of SRAM and 4MB of onboard Flash, providing enough space for data storage and program execution. Integrated TCP/IP Protocol Stack: The CH9120's integration facilitates seamless networking, allowing straightforward internet communication.
• Versatile GPIO: The board provides 14 GPIO pins, enabling users to connect and manage external devices, which enhances its flexibility for various project needs.
• Simple Programming and Debugging: When connected through USB, the board appears as a high-capacity storage device, making program transfer easier and debugging more straightforward.
• More hardware peripherals:
  • 1x SPI (SPI0)
  • 2x I²C
  • 2x UART
• 13x Controllable PWM channels
• Built-in temperature sensor.
• 8 × Programmable I/O (PIO) state machines for custom peripheral support.

See: RP2040-Zero/Eth I²C communication

See: RP2040-Zero/Eth UART communication

The RP2040 communicates internally with the CH9120 Ethernet chip using a dedicated UART serial interface and control pins:

The integrated CH9120 chip supports four selectable communication protocols:

• TCP Client
• TCP Server
• UDP Client
• UDP Server

Network Configuration

The code for configuring the operating mode, IP, gateway, subnet mask, port number, and serial port baud rate is located in the Python/RP2040-ETH-Demo/RP2040-ETH-Demo.py file. You can modify it according to your specific requirements.

MODE = 1  #0:TCP Server 1:TCP Client 2:UDP Server 3:UDP Client
GATEWAY = (192, 168, 1, 1)    # GATEWAY
TARGET_IP = (192, 168, 1, 10) # TARGET_IP
LOCAL_IP = (192, 168, 1, 200) # LOCAL_IP
SUBNET_MASK = (255,255,255,0) # SUBNET_MASK
LOCAL_PORT1 = 1000            # LOCAL_PORT1
TARGET_PORT = 2000            # TARGET_PORT
BAUD_RATE = 115200            # BAUD_RATE
